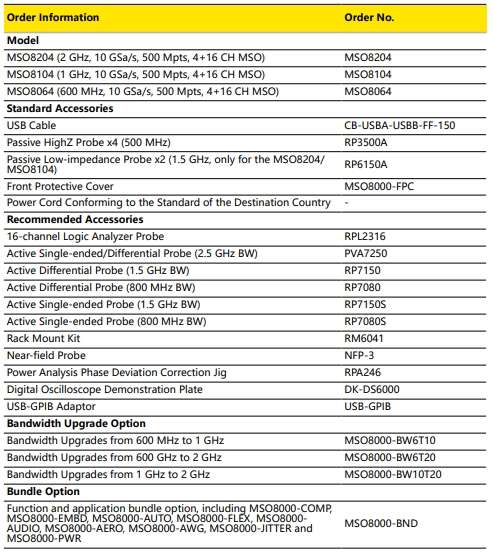

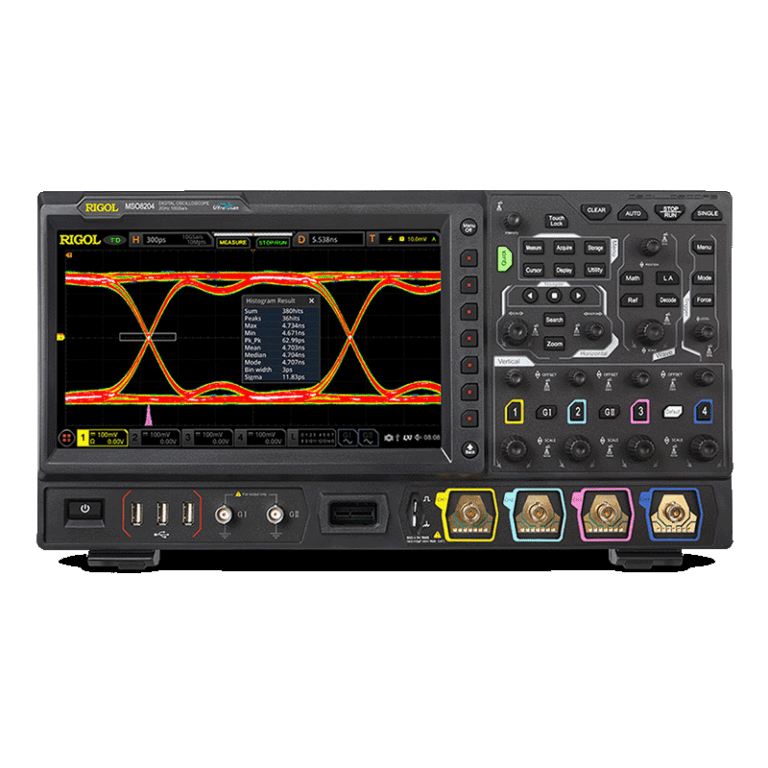

MSO8000 (MSO8064, MSO8104, MSO8204) เป็นเครื่องออสซิโลสโคปดิจิตอลแบบผสมสัญญาณระดับกลางถึงระดับสูง ที่พัฒนาบนชิป ASIC ที่เป็นกรรมสิทธิ์ของ RIGOL และแพลตฟอร์มเทคโนโลยี UltraVision 2

รายละเอียดทั่วไป (Feature)

Analog channel bandwidth: 600 MHz, 1 GHz, and 2 GHz
4 analog channels, 1 EXT channel, and 16 digital channels (standard, required to
purchase the probe)
Up to 10 GSa/s real-time sample rate
Up to 500 Mpts memory depth (standard)
Waveform capture rate > 600,000 wfms/s
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording
and playback
Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, arbitrary waveform generator (option),
digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer(option)
Provides auto measurement for up to 41 waveform parameters, offers fullmemory hardware measurement function
Various math operations, built-in powerful FFT analysis and peak search
functions
Histogram analysis (standard)
Independent search, navigation key, and event table
Real-time eye diagram and jitter analysis software (option)
Advanced built-in power analysis software (option)
User-defined one-key quick operation
10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with
color persistence
Multiple interfaces available: USB HOST & DEVICE, LAN (LXI), HDMI, TRIG OUT,
and USB-GPIB
Web Control remote command
Unique online upgrade
Compact and portable industrial design, easy to operate

Excellent bandwidth and sampling rate

The MSO8000 series digital oscilloscopes offer you a maximum analog bandwidth of 2 GHz and a sampling rate of 10 GSa/s. Low-bandwidth models can have their bandwidth upgraded to 2 GHz (single-channel and half-channel modes) at any time via software, ensuring that you have higher signal fidelity and a resolution as low as 100 ps (up to 2 ps at the smallest time base) to view tiny waveform details.

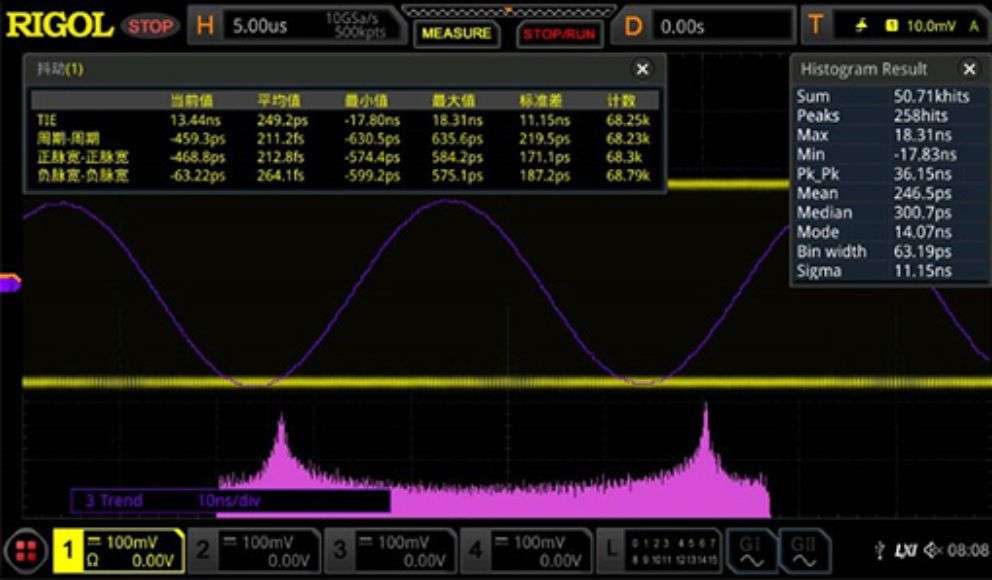

Jitter analysis supporting diversified display

Through the jitter analysis function of the oscilloscope, multiple consecutive bits can be measured and statistically analyzed at once, efficiently completing the jitter analysis of large amounts of data.

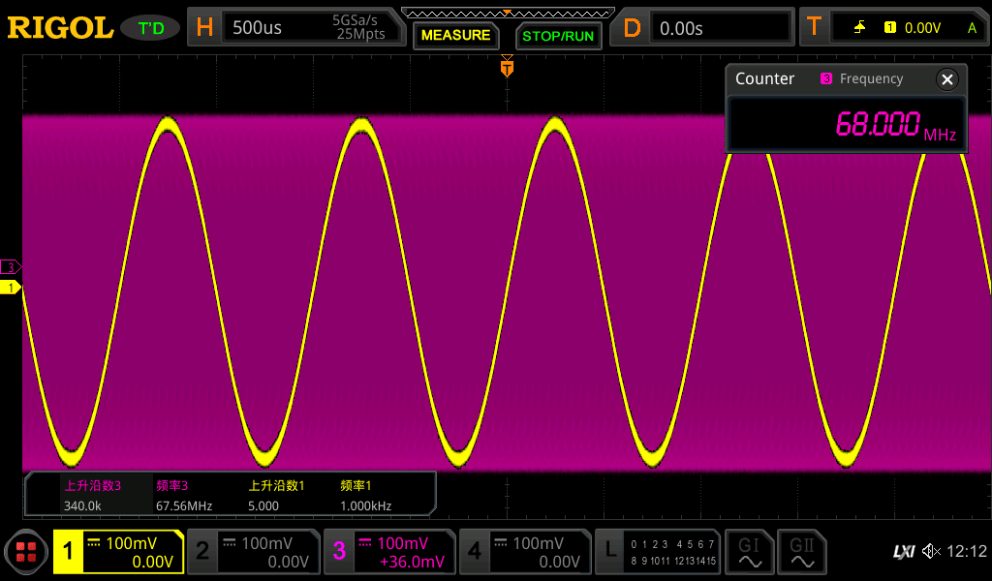

Full memory hardware measurement

No longer limited to the waveform effects visible on the screen, it can still accurately obtain results for multi-cycle high-frequency signal testing.
