MSO/DS2000A Series : Digital Oscilloscope

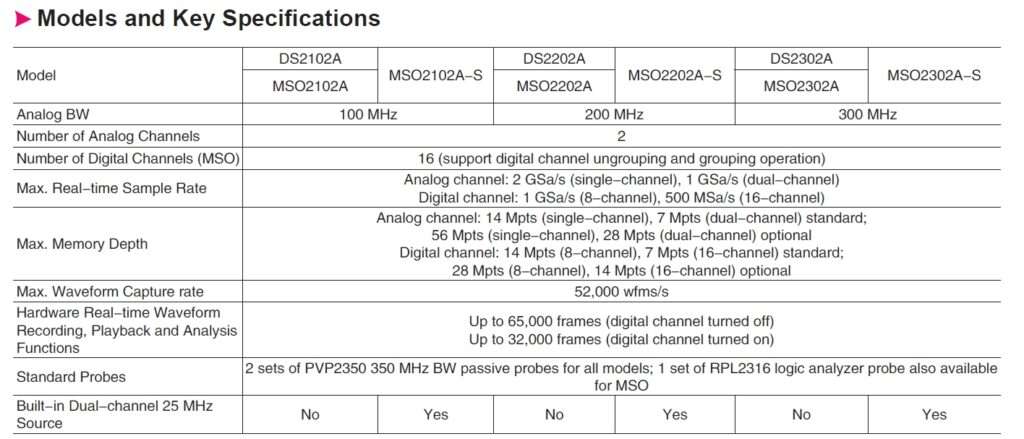

MSO/DS2000A (DS2302A, DS2202A, DS2102A, MSO2102A, MSO2102A-S, MSO2202A, MSO2202A-S, MSO2302A, MSO2302A-S) เป็นเครื่องออสซิโลสโคปดิจิตอลแบบอเนกประสงค์ที่มีแบนด์วิดธ์ตั้งแต่ 100 MHz ถึง 300 MHz และอัตราการสุ่มตัวอย่างสูงสุดถึง 2 GSa/s โดยรวมความลึกของหน่วยความจำที่สูงและอัตราการจับสัญญาณรูปคลื่นที่รวดเร็ว

รายละเอียดทั่วไป (Feature)

Analog channels: 2 GSa/s real-time sample rate; 14 Mpts standard memory
depth and up to 56 Mpts memory depth (option)
Digital channels: 1 GSa/s real-time sample rate; 14 Mpts memory depth (the
deepest among MSOs of the same class)
52,000 wfms/s (dots display) waveform capture rate
Real-time hardware waveform recording, playback and analysis functions; up to 65000 frames of waveform can be recorded; support digital channel waveform recording and playback
256 degree gray scale display
300 MHz, 200 MHz, and 100 MHz analog channel bandwidth
2+16-channel mixed signal digital oscilloscope (MSO2000A)
Built-in dual-channel 25 MHz signal source (MSO2000A-S)
Low base noise, 500 μV/div to 10 V/div ultra-wide vertical dynamic range
Various trigger functions
Various decoding functions
Various interfaces: USB Host, USB Device, LAN (LXI), AUX and USB-GPIB
(option)
29 waveform parameters auto measurement (with statistics)
Fine delayed sweep function
Built-in FFT function
Pass/fail test function
Waveform math operation functions
Support USB storage device storage and PictBridge printer
Conform to LXI CORE 2011 DEVICE standards; enable quick, economic and
efficient creation and reconfiguration of test system
Support remote command control
8.0 inch WVGA (800*480) 160,000 color TFT LCD, with ultra-wide screen, vivid picture, low power consumption and long service life
Easy to use digital channel grouping and group operation functions
Adjustable waveform brightness
Auto setting of waveform display (AUTO)
Built-in help system
Support multiple languages, Chinese/English interface and Chinese/English input
Novel and delicate industrial design and easier operation

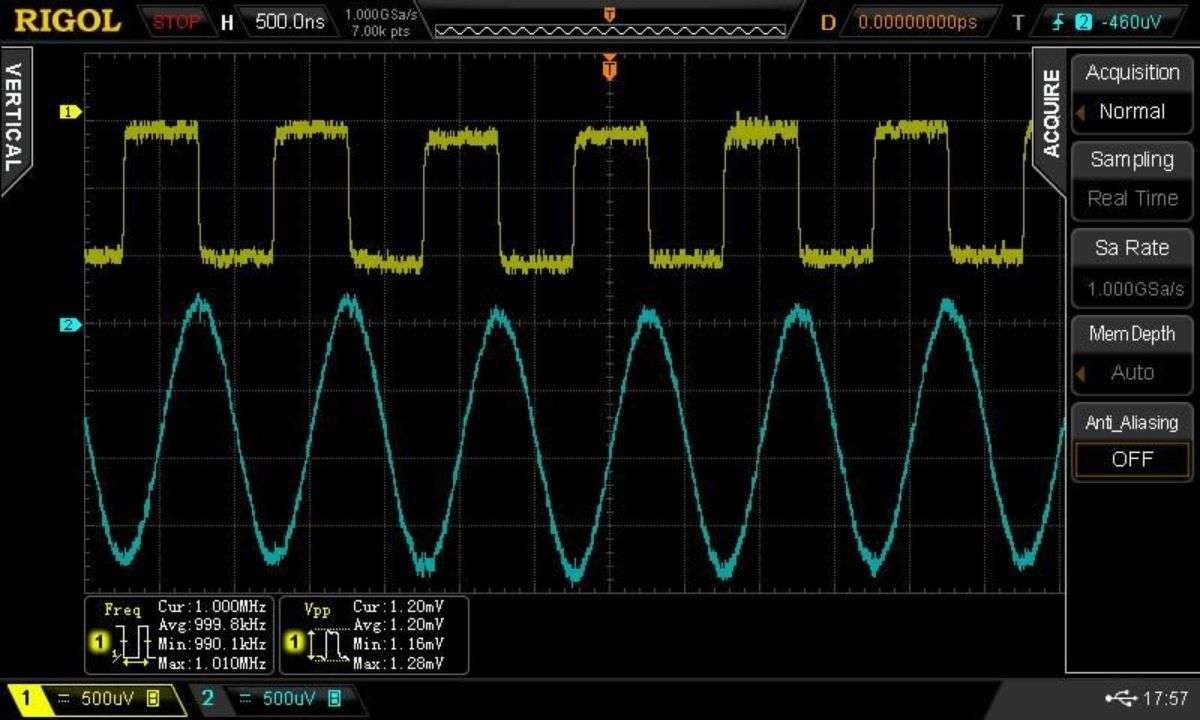

Low Noise floor with wide vertical range (500uV/div ~ 10V/div)

With a lower noise range setting at 500uV/div as well as included 50 Ohm termination and a clean frequency response design, the 2000 Series oscilloscope enables more sophisticated analysis of low level signal artifacts that can effect your design.

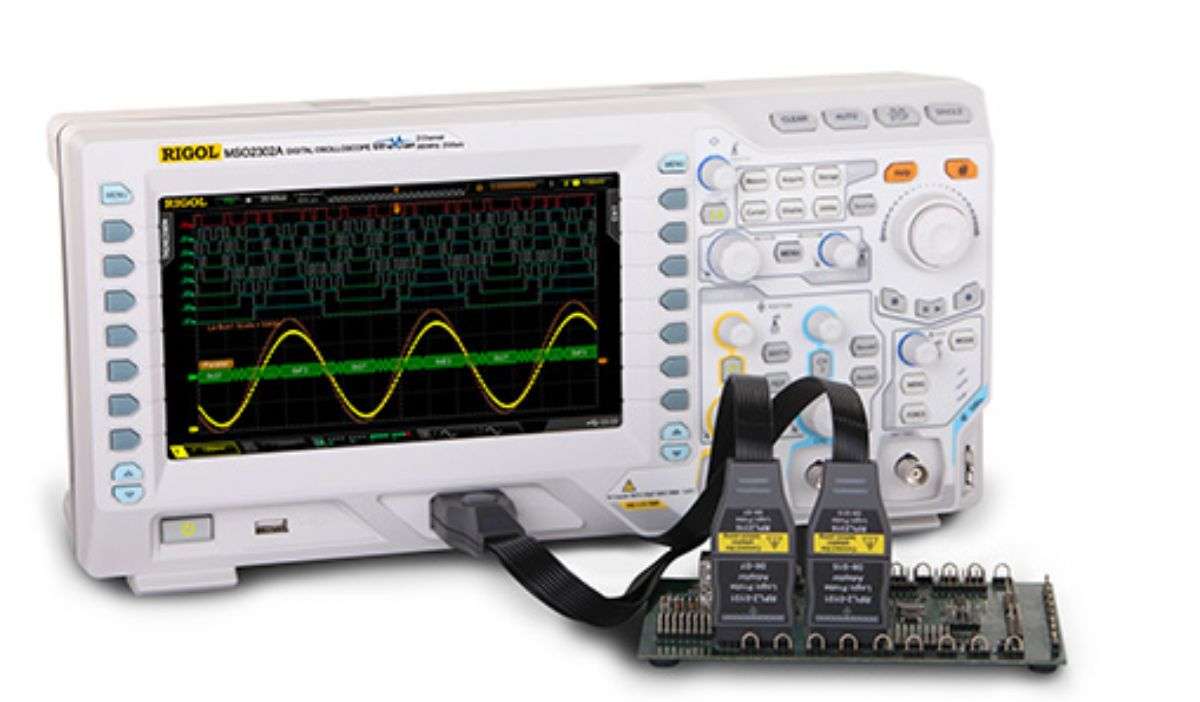

16 Digital Channels (MSO Models)

The MSO2000A models add Mixed Signal Capabilities allowing users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.

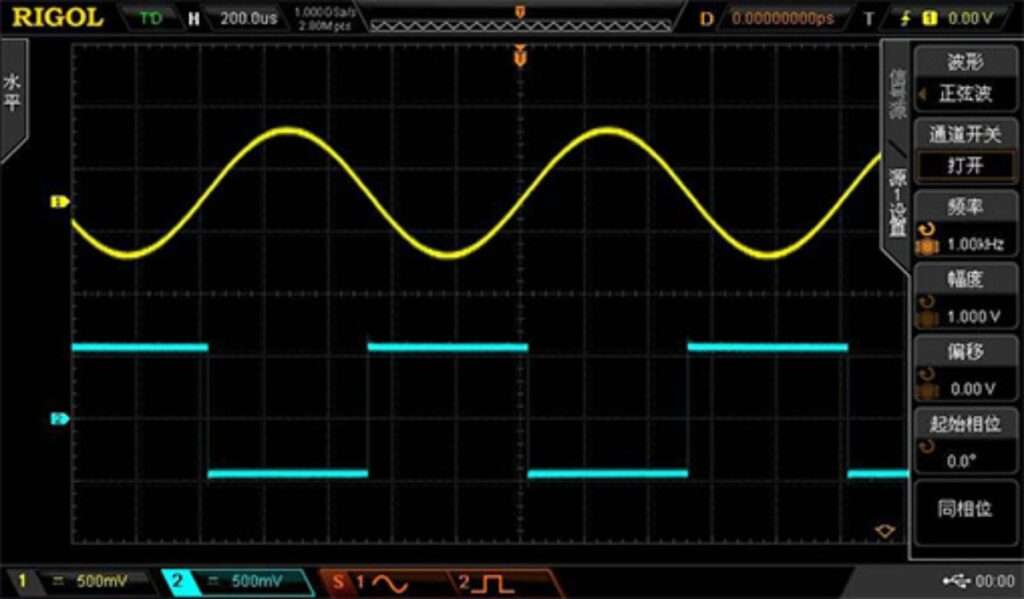

ntegrated 2 Channel full function 25MHz generator

Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the “-S” models adds value and capability to the bench for a variety of applications.
