MSO/DS7000 Series : Digital Oscilloscope

MSO/DS7000 (MSO7054, MSO7034, MSO7024, MSO7014, DS7054, DS7034, DS7024, DS7014) เป็นเครื่องออสซิโลสโคปดิจิตอลแบบผสมสัญญาณระดับกลางที่พัฒนาบนชิป ASIC ที่เป็นกรรมสิทธิ์ของ RIGOL และแพลตฟอร์มเทคโนโลยี UltraVision 2

รายละเอียดทั่วไป (Feature)

Analog bandwidth: 500 MHz, 350 MHz, 200 MHz, and 100 MHz; bandwidth upgrade option
4 analog channels, 1 EXT channel, and 16 digital channels (Option)
Up to 10 GSa/s real-time sample rate
Up to 500 Mpts memory depth (Option
High waveform capture rate (over 600,000 waveforms per second)
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback function
rates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer
Auto measurement of 41 waveform parameters; full-memory hardware measurement function
A variety of math operations, built-in enhanced FFT analysis, and peak search function
Waveform histogram analysis (standard)
Independent search, navigation keys, and event table
Built-in advanced power analysis software (option
User-defined one-key quick operation
10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persisten
Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
Web Control remote command
Unique online version upgrade
Novel and delicate industrial design, easy to operate

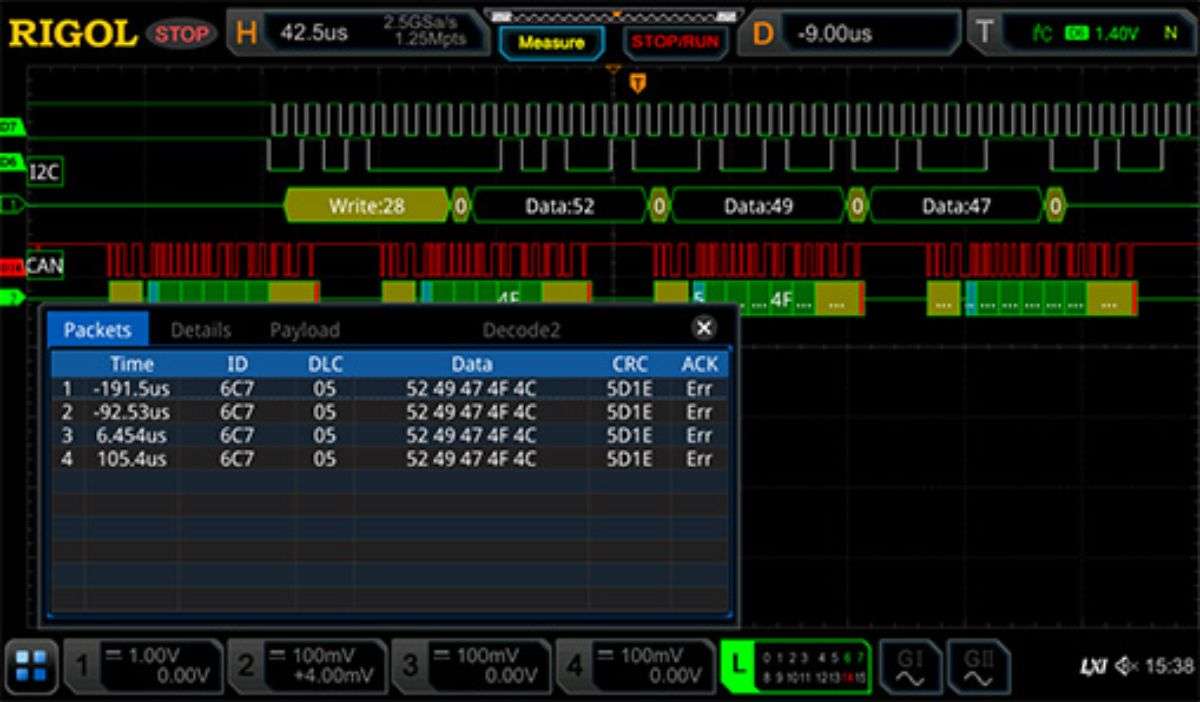

Protocol Analysis for today’s common serial communication

Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs.

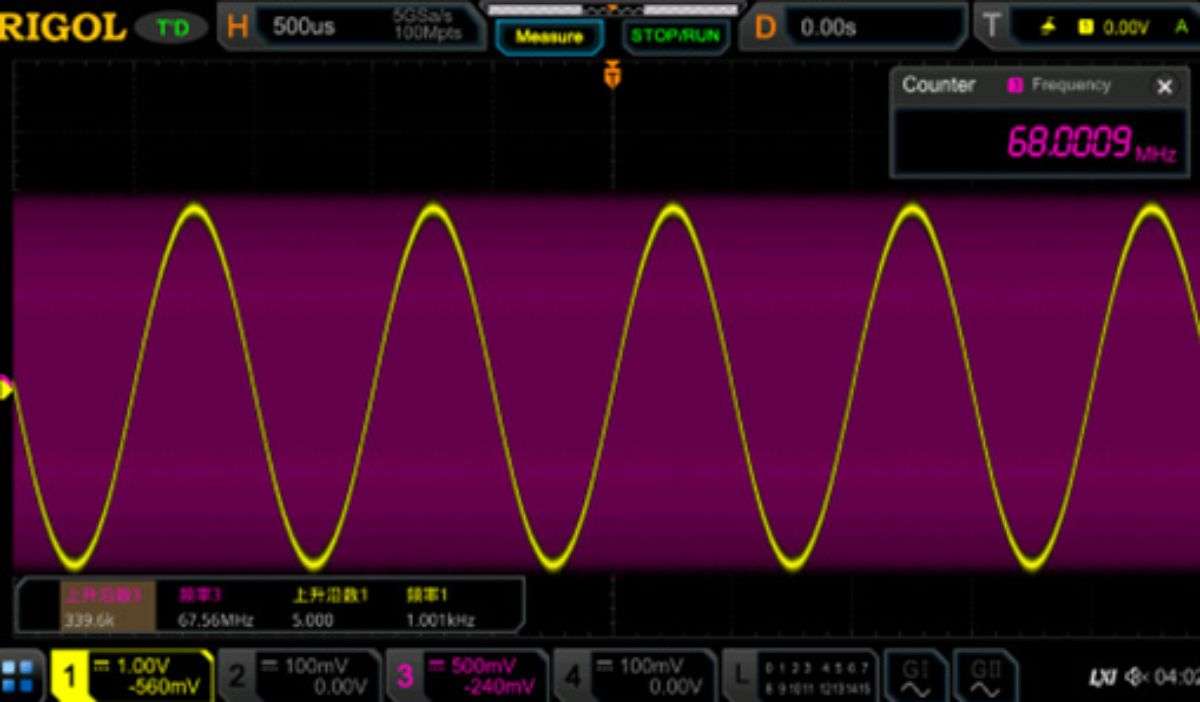

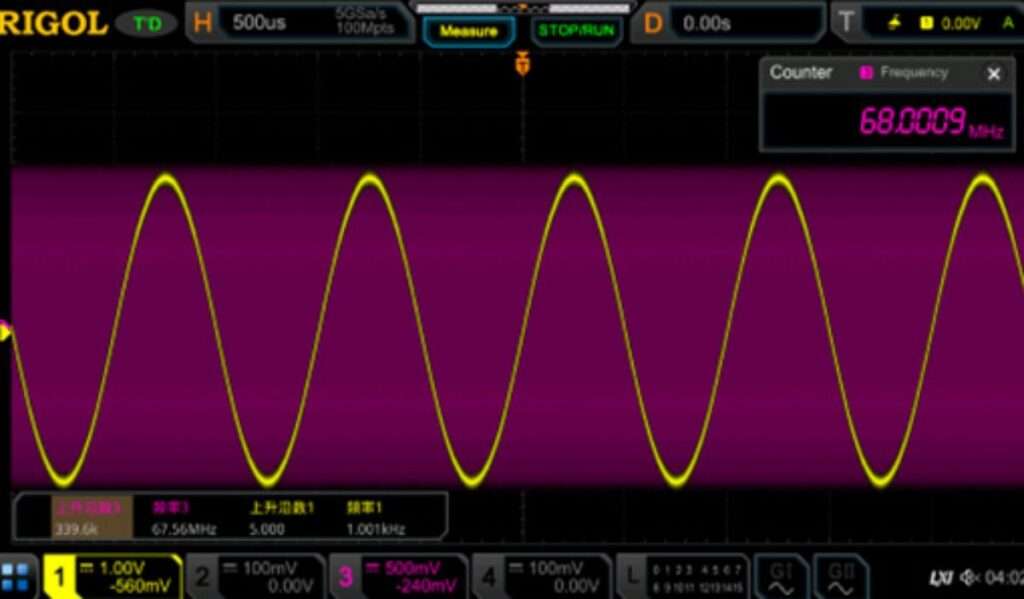

Full Memory Hardware Measurement

No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.
