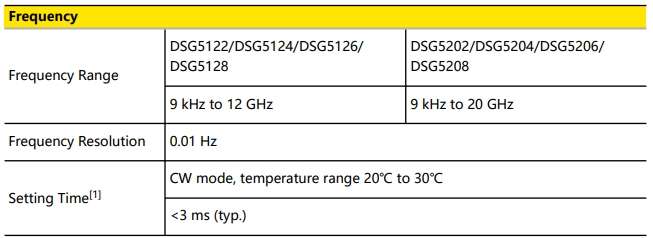

The frequency range of DSG5000 series microwave signal generator is 9 kHz to 12 GHz / 20 GHz, and it supports 2-8 independent channel outputs. Its stable phase coherence, excellent low phase noise and good spurious and harmonic suppression ability, Meet the needs of complex tests such as superconducting quantum computing, radar signal generation, MIMO, EMS, etc.
DSG5000 series microwave signal generator single instrument supports up to 8-channel output, and the channels are independently controllable, which improves the integration density and helps simplify the test system setup. Only one instrument can be used to achieve stable phase coherence and ultra-low phase Noise multi-channel signal application, greatly saving your test space and cost.

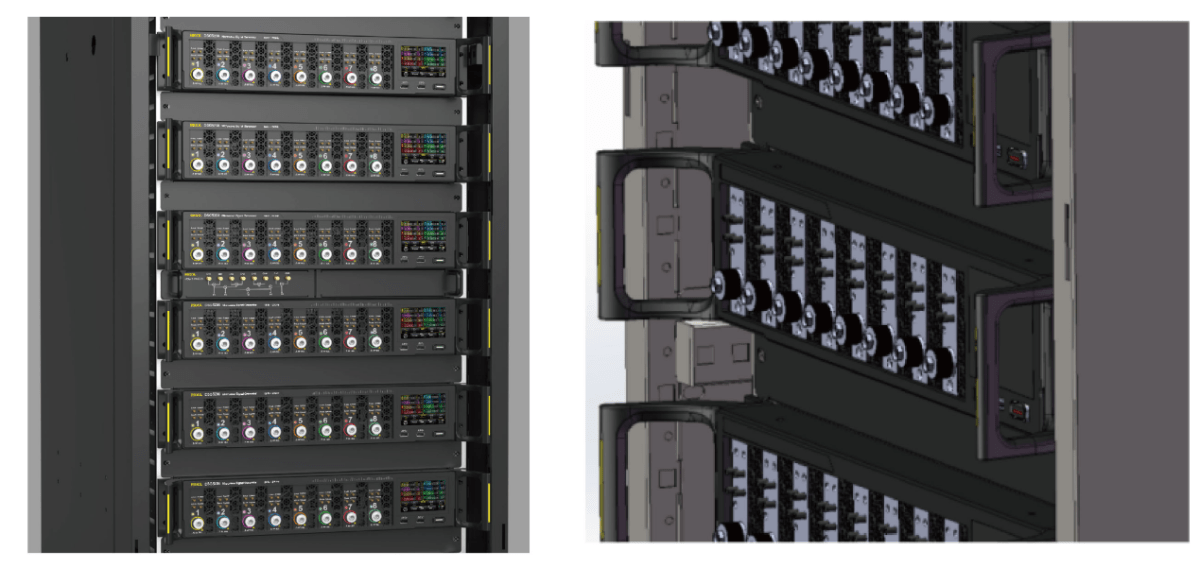

Adopt 2U full rack size standard chassis, with rack installation kit, easy to realize channel expansion, easy to integrate and apply, also has front and rear ventilation and heat dissipation design, when multiple units are integrated, the accuracy and stability will not be affected by heat.

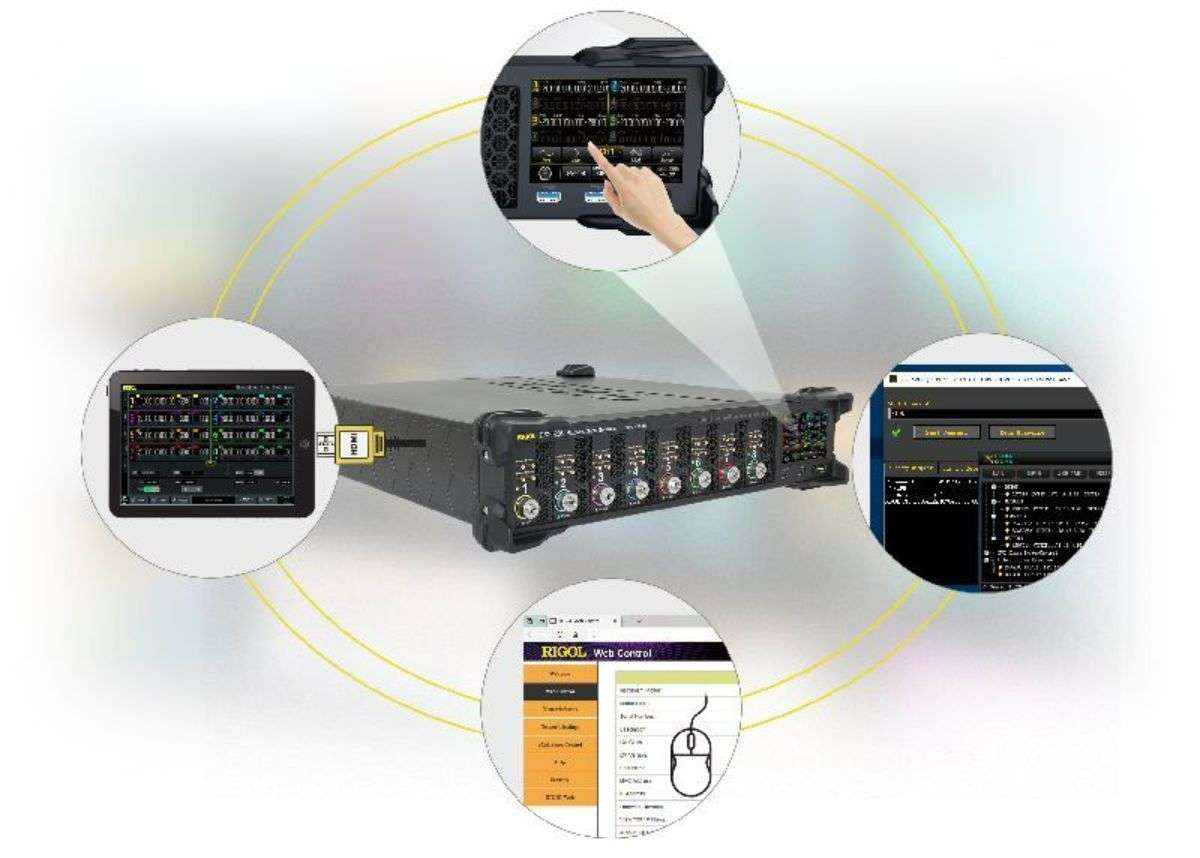

The DSG5000 series microwave signal generator comes with a touch screen and a standard USB/LAN interface, which can be automatically controlled by sending SCPI commands. Support external PAD, display, projector, etc. through the HDMI port on the rear panel, and realize single-unit remote control through Web Control.
