RSA3000 Series - RIGOL ประเทศไทย - รับประกัน 3 ปี

RSA3000 Series : Spectrum Analyzer (สเปกตรัมอนาไลเซอร์)

The RSA3000 real-time spectrum analyzer with real-time analysis and sweep analysis capabilities, optional EMI measurement application software (EMI), with excellent performance and specifications. Its frequency range is 9kHz to 3.2GHz, and it is available with the tracking source “-TG” model, which can be widely used in enterprise R&D, factory production, education and teaching.

รายละเอียดทั่วไป (Feature)

Ultra-Real technology
Frequency: up to 4.5 GHz
Displayed average noise level (DANL): <-161 dBm (typical)
Phase noise: <-102 dBc/Hz (typical)
Level measurement uncertainty: <1.0 dB
4.5 GHz tracking generator
Min. RBW 1 Hz
Up to 40 MHz real-time analysis bandwidth
Multiple measurement modes
Various advanced measurement functions
EMI measurement application (option)
Vector network analyzer application
Multiple trigger modes and trigger masks
Density, spectrogram, and other display modes
PC software options
10.1” capacitive multi-touch screen; supporting touch gestures
USB, LAN, HDMI and other communication and display interfaces

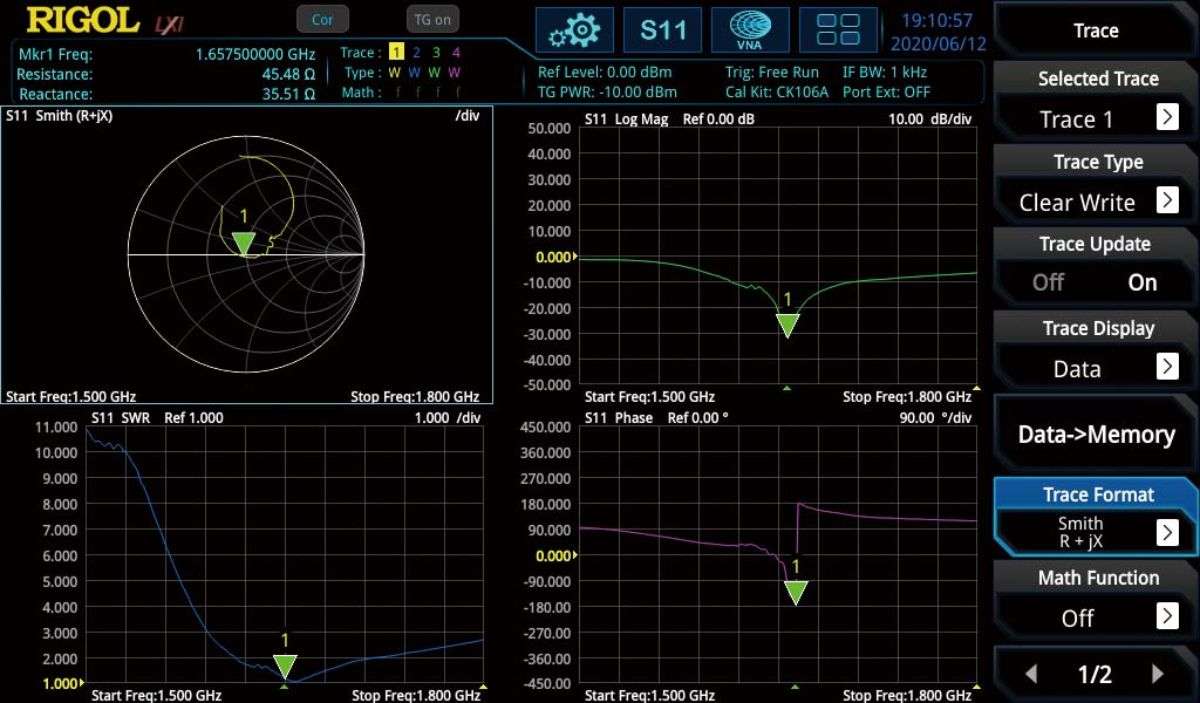

Built-in Vector Network Analysis mode

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.(*N-model ONLY)

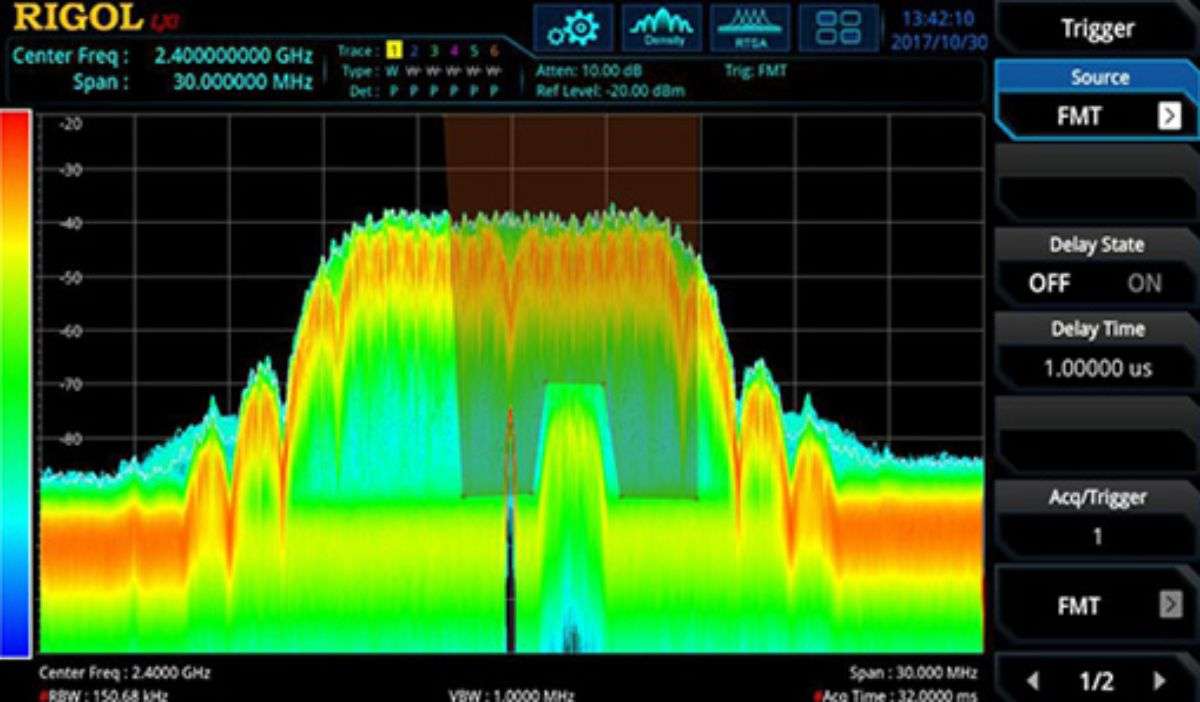

Signal Triggering and Monitoring Via Fmt Mode

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range.

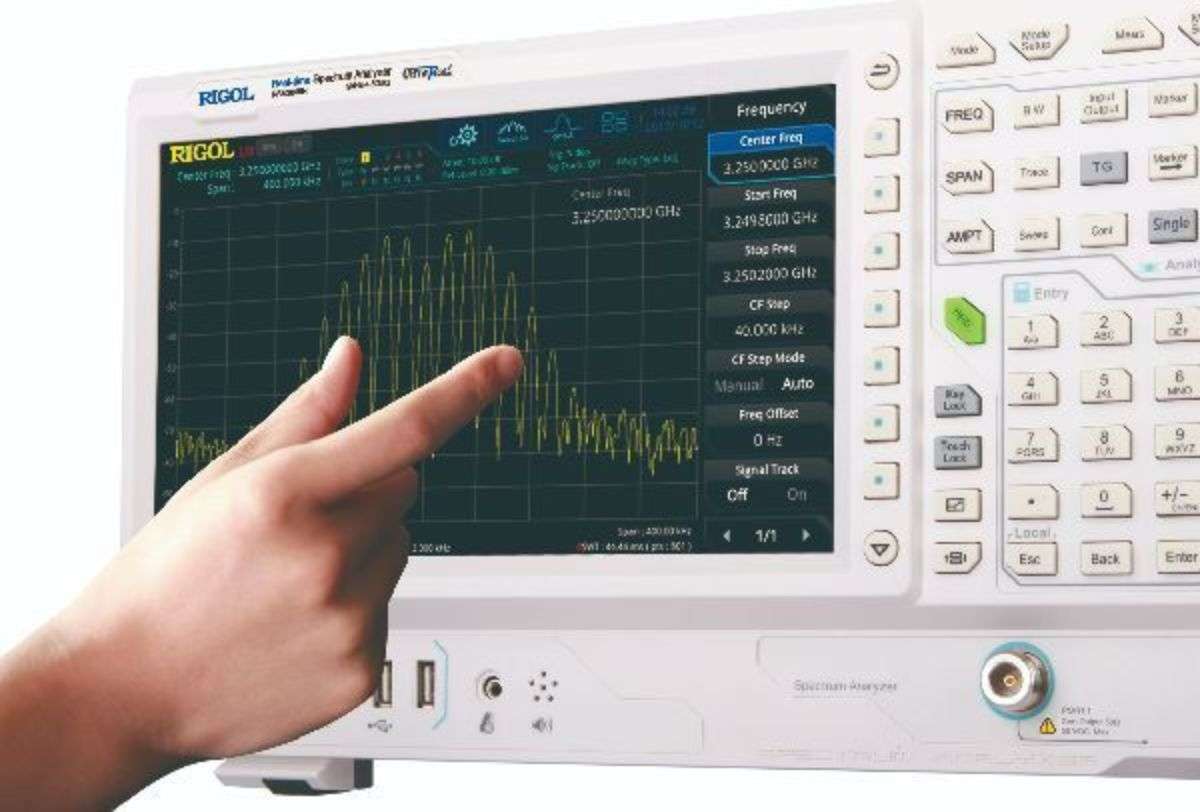

Complete Operations with a Multi-touch Screen

RSA3000 with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.
